特点：
1、人性化的设计，更实用的用户体验。
With humanized design, and practical user experience.
2、灵活操作的运动控制系统，让切割变得更简单。
The flexible moving control system makes cutting rnore simply.
3、德国ATLANTA齿轮齿条，台湾上银导轨，日本松下电机，更高的稳定性。
Geman ATLANTA rack and pinion raiI from Taiwan Hiwin servo motor from Japan panasonic makes the performance more stable.
4、人体工学的—体化设计，操作方便、舒适。
Integration of ergonomic design，with advantage of operating easilyand comfortably．
5、导轨安装调试采用精密准直仪测试，精度小于0.02mm。
Rail assembly and adjustment adopts collimator testing，the accuracy being less than 0.02mm．
6、传动系统采用台湾上银直线导轨；运动轨迹平滑细腻，速度和精度大幅提高。
The driving system uses rail guide and ball screw made by Taiwan Hiwin，the smoothly moving track increases the speed and accuracy．
主要配件：
 |  |  |  | |
主要技术参数：

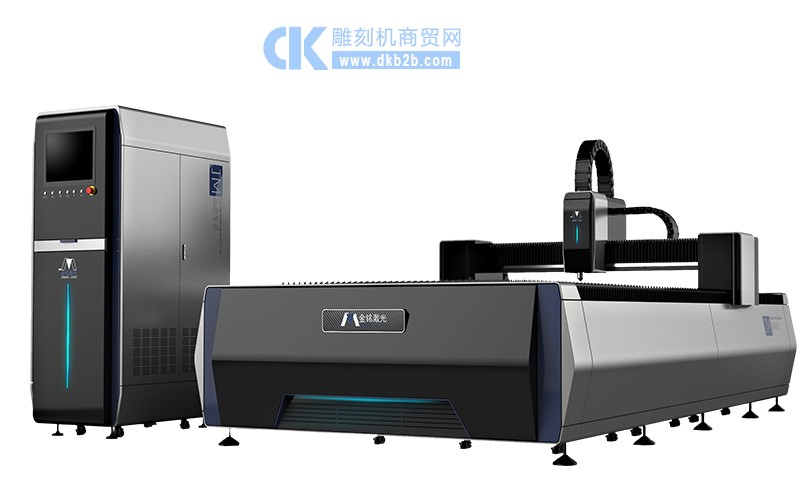

| 型号 Model | JM-1530 |
| 工作幅面 Working size | 1500*3000MM |
| 激光功率 Laser power | 500W/500W |
| 最大运行速度 Max.Cutting Speed | ≥50m/min |
| 定位精度 Positioning Accuracy | ±0.01MM |
| 整机重量 Total Weight | 3500kg |
| 外形尺寸（mm） Outline dimension（mm） | 4500*2500*1300 mm |
| 传动方式 Transmission mode | 精密齿条伺服双驱动 Precision rack servo dual drive |
| 整机功率 Power | ≤6000W |
| 冷却方式 Cooling mode | 强制水冷 Forced water cooling |
